P490 – Mirror Unit M2 MIFO PTB
Application
Mirror unit (M2) for soft X-ray synchrotron radiation
Year of delivery
2021
Installation site
MIFO beamline at National Metrology Institute (PTB) of Germany
The hexapod units for the MIFO beamline of the PTB at BESSY feature the lastest updates of the hexapod design for compact size, straightforward alignment and calibration at reliably excellent performance.
Design Features
-

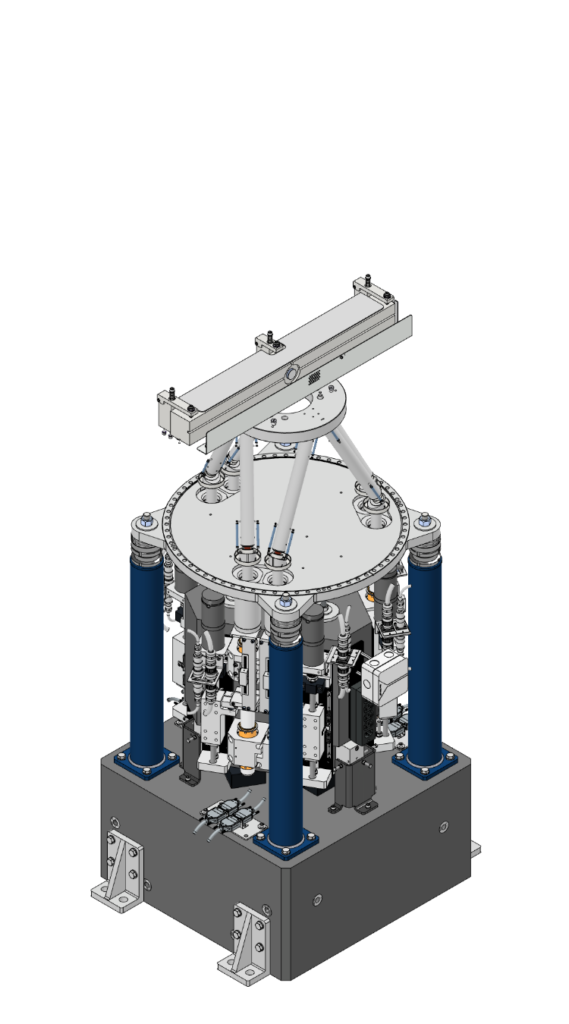

Constant-strut-length hexapod mechanism.
- Six degrees of freedom and selectable rotation center.
- Spectral range: 1.5 – 10 keV.
- Optical elements: one focusing mirror.
- Electrode at mirror surface for carbon contamination prevention.
- Temperature sensor at internal mechanics.
- Mechanically decoupled internal mechanics from the vacuum chamber.
- Internal mechanics directly connected to the adjustable support structure underneath.
-
EtherCAT based motion control system, synchronized encoder readout (suitable for on-the-fly measurements), software with server-client architecture, TCP-IP protocol, EPICS interface.
- Adjustable support structure.
- Permanently installed bakeout provisions.
Performance Features
- High positioning resolution (minimum incremental motion).
- High stability and repeatability for all degrees of freedom.
- Minimized mounting induced deformations.

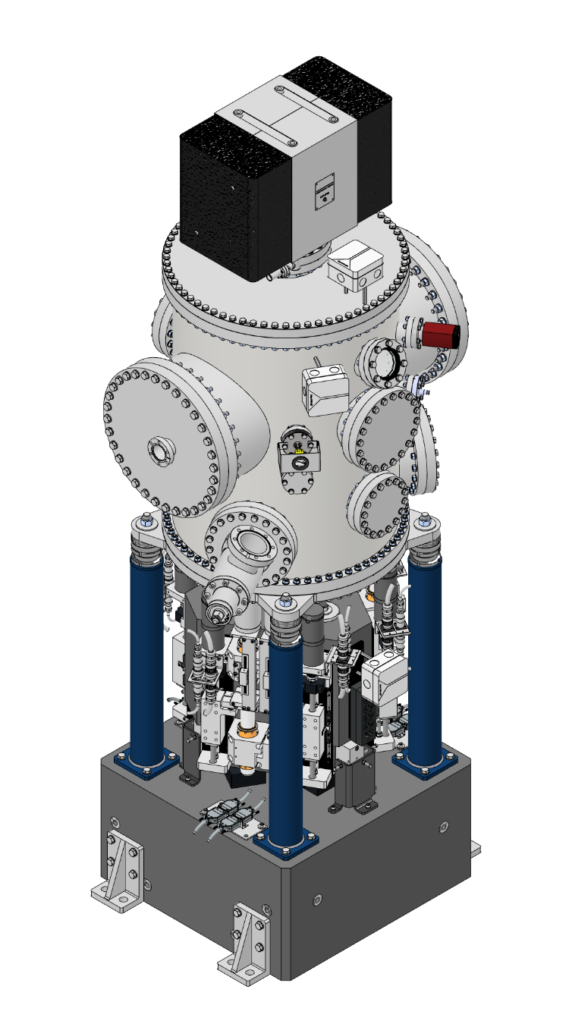

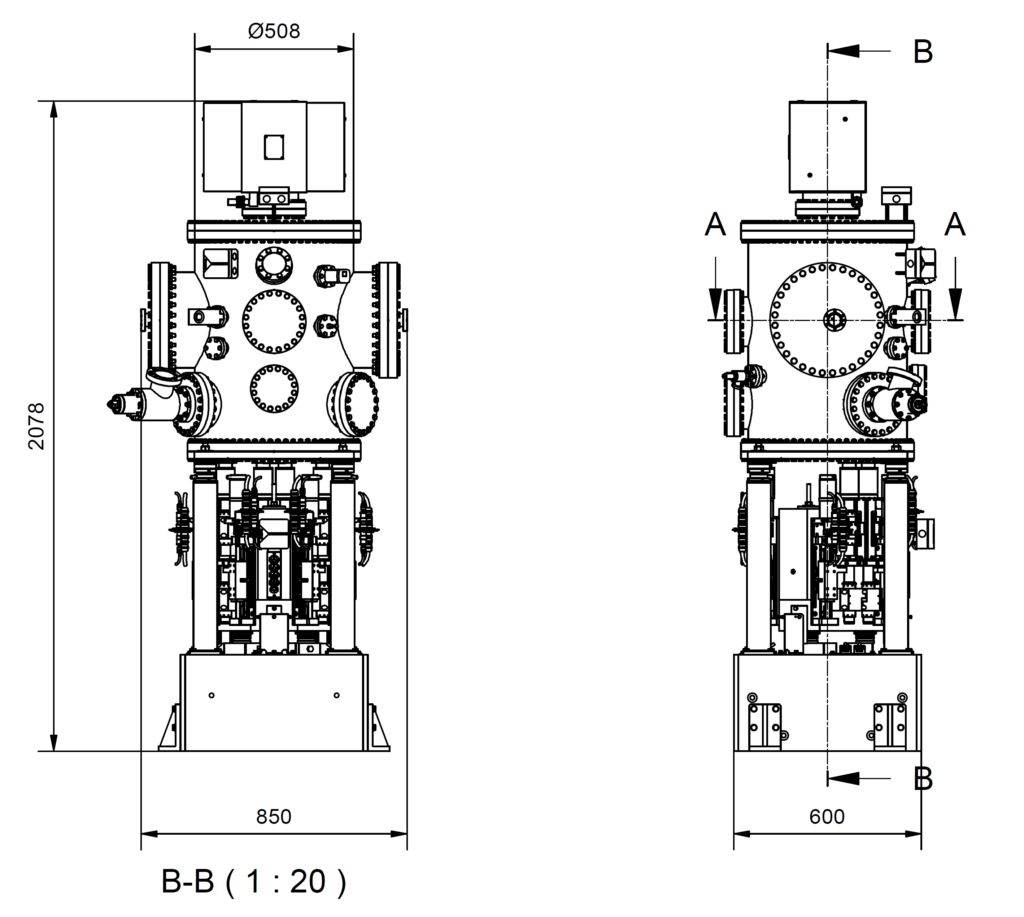

Outer Dimensions
Technical specifications and performance values
General
Vacuum chamber
Chamber type
cylindrical, vertical axis
Main flanges
at the top
Material
1.4404 (C < 0.02%)
Base pressure
10-10 mbar range
Optical design parameters
Beam height
1378 mm
Number of mirrors
1
Surface shape
cylindrical
Mirror dimensions
650 mm x 60 mm x 65 mm
Actuator drives for hexapod axes
Resolution (design value)
0.00157 µm /motor fine step
(1/128, recommended)
0.001 µm /encoder count
Mirror mechanics
Pitch rotation
Range
± 2.1°
Resolution (calculated value)
0.033 µrad
Repeatability
0.13 µrad (pitch)
0.08 µrad (roll)
Long-term stability (30 minutes)
0.17 µrad
Roll rotation
Range
± 2.1°
Resolution (calculated value)
0.12 µrad
Repeatability
0.14 µrad (pitch)
0.08 µrad (roll)
Yaw rotation
Range
± 2.1°
Resolution (calculated value)
0.045 µrad
Translation (meridional)
Range
± 3.1 mm
Resolution (calculated value)
10.6 nm
Repeatability
0.002 µm (translation)
Translation
along surface normal
Range
± 3.1 mm
Resolution (calculated value)
11.1 nm
Translation (sagittal)
Range
-6 mm to 11 mm
Resolution (calculated value)
1.56 nm
Repeatability
0.001 µm (translation)
Performance Test Results

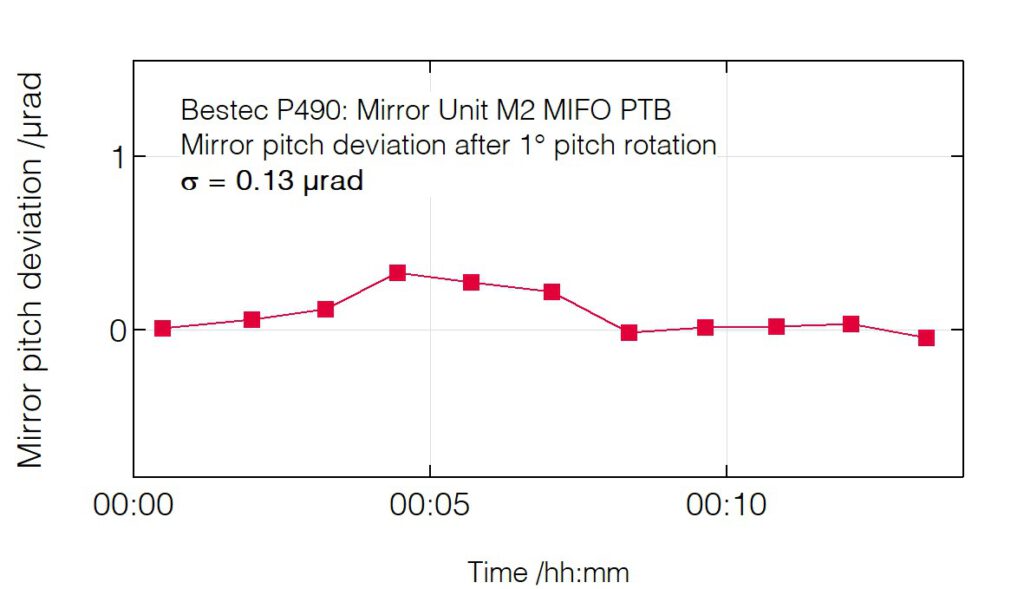

Pitch deviation after pitch change
Parasitic roll after pitch change

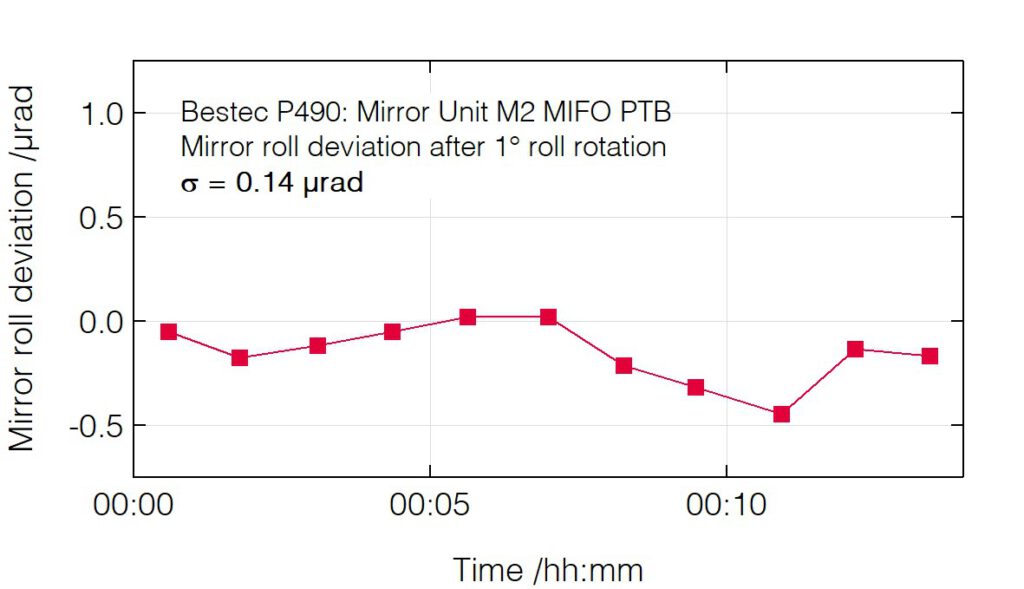

Roll deviation after roll change

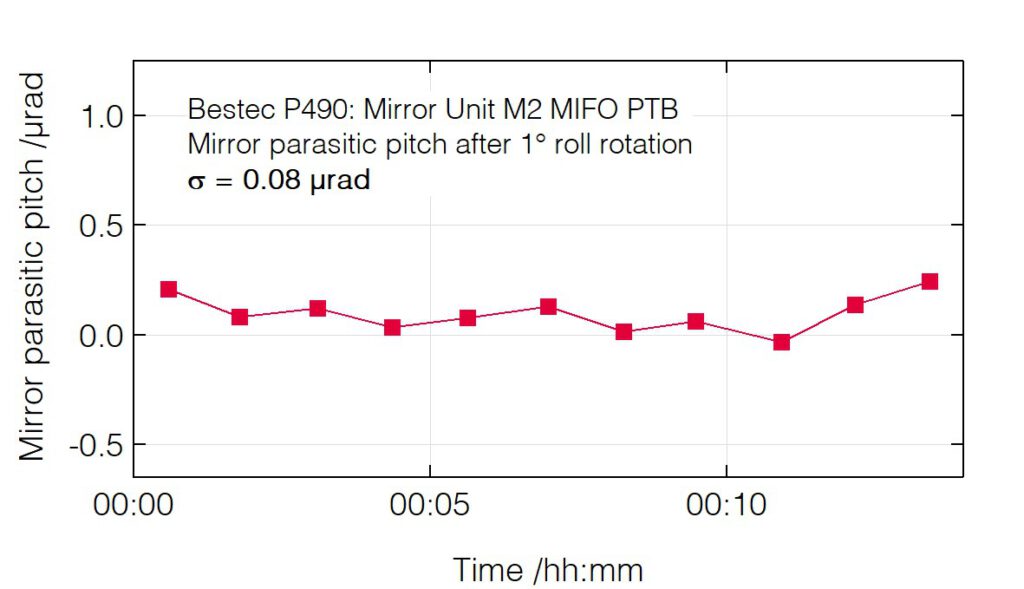

Parasitic pitch after roll change

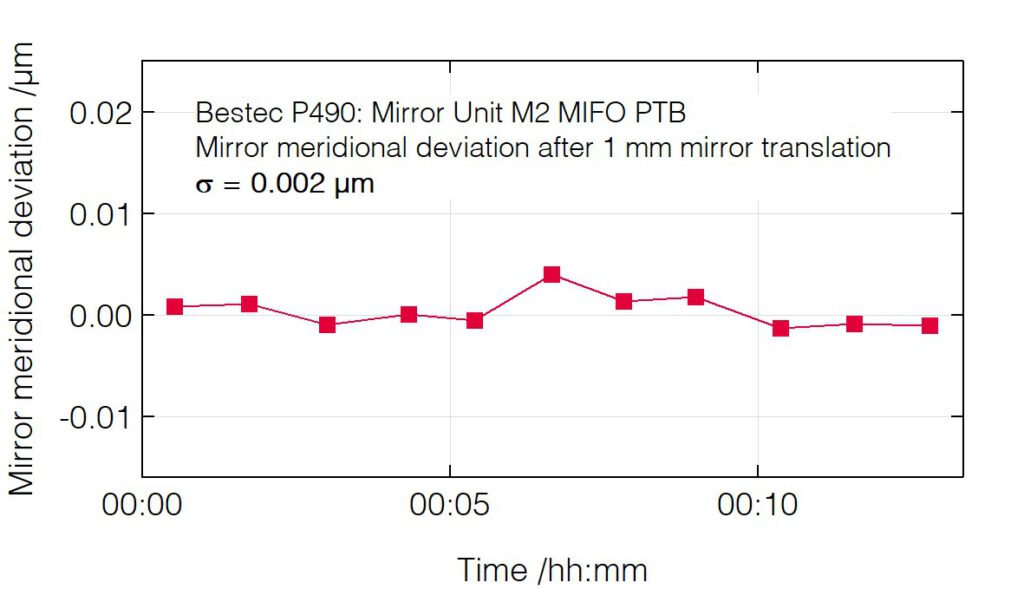

Meridional deviation after mirror translation

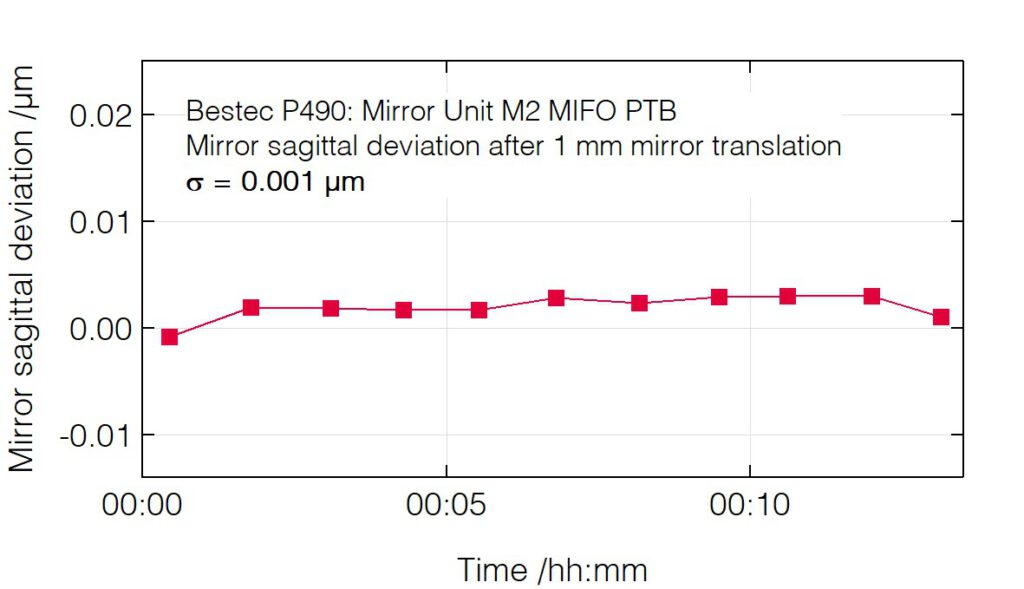

Sagittal deviation after mirror translation

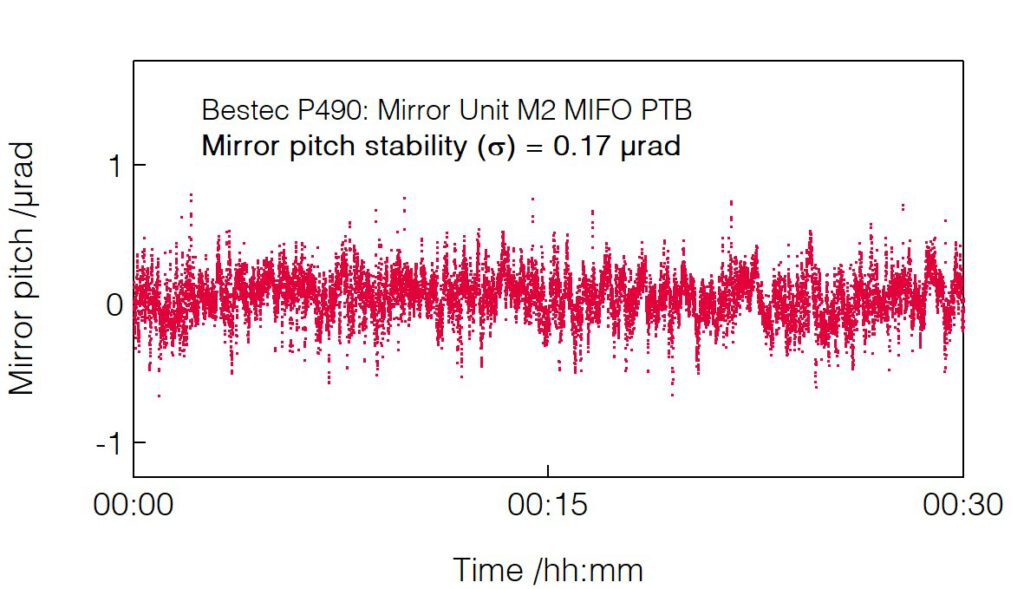

Mirror pitch long-term stability

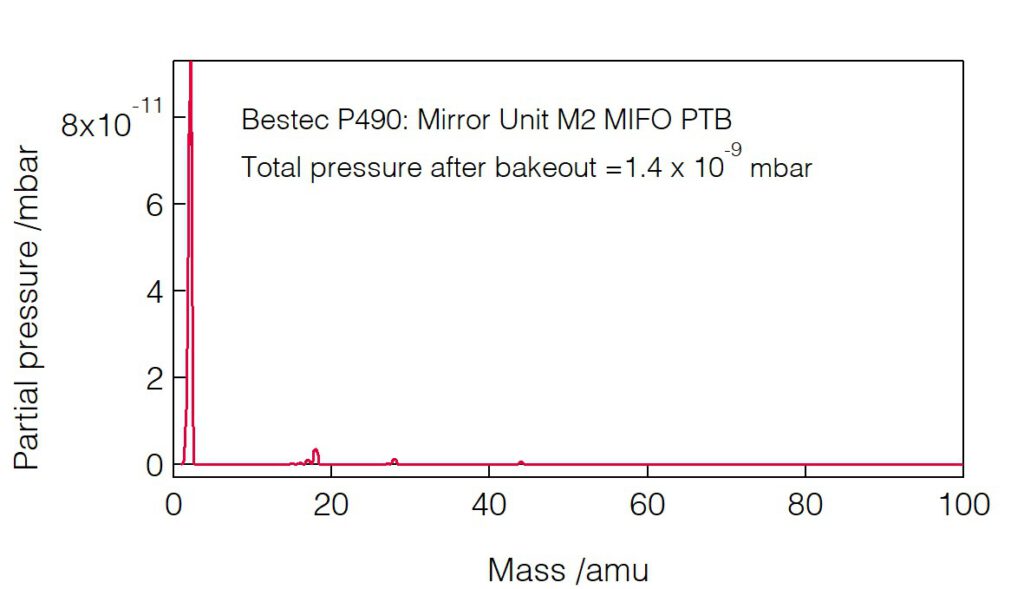

Residual gas analysis
