P439 – Mirror Unit ESM NSLS-II
Application
Mirror unit (M4) for soft X-ray synchrotron radiation
Year of delivery
2016
Installation site
ESM beamline at the synchrotron radiation source NSLS-II, USA
Design Features
-

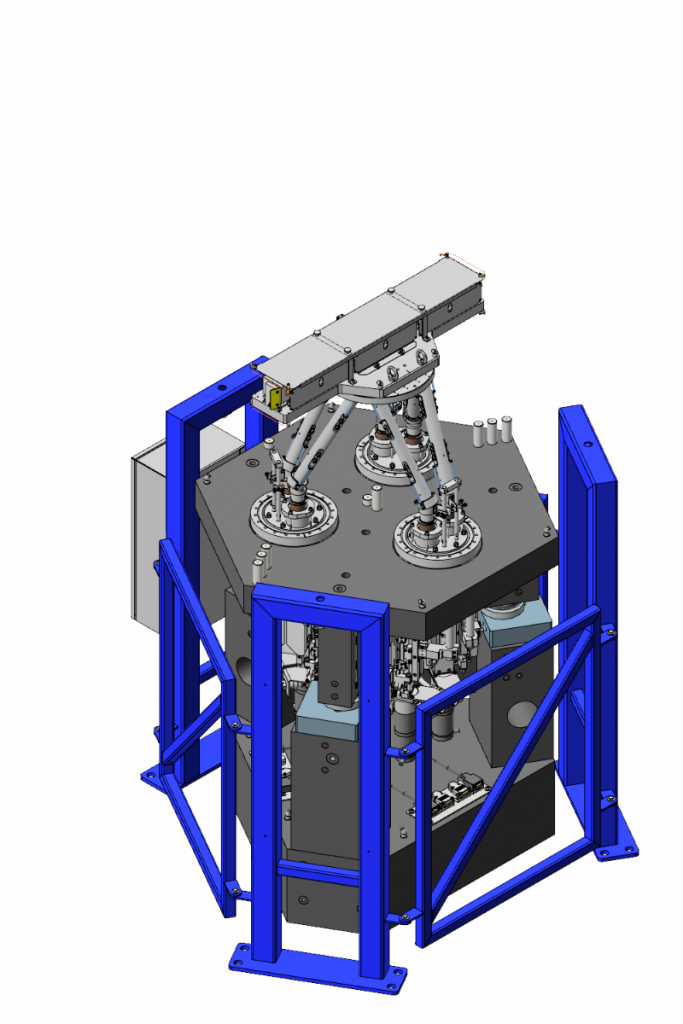

Constant-strut-length hexapod mechanism.
- Six degrees of freedom and selectable rotation center.
- Spectral range: 15 – 1500 eV.
- Optical elements: one focusing mirror.
- Electrode at mirror surface.
- Temperature sensors at mirror holder and chin guard.
-
Four motorized and electrically isolated OFHC baffle blades at the entrance flange.
- Permanently installed bakeout provisions.
- Adjustable support structure.
Performance Features
- High positioning resolution (minimum incremental motion).
- High stability and repeatability for all degrees of freedom.
- Minimized mounting induced deformations.

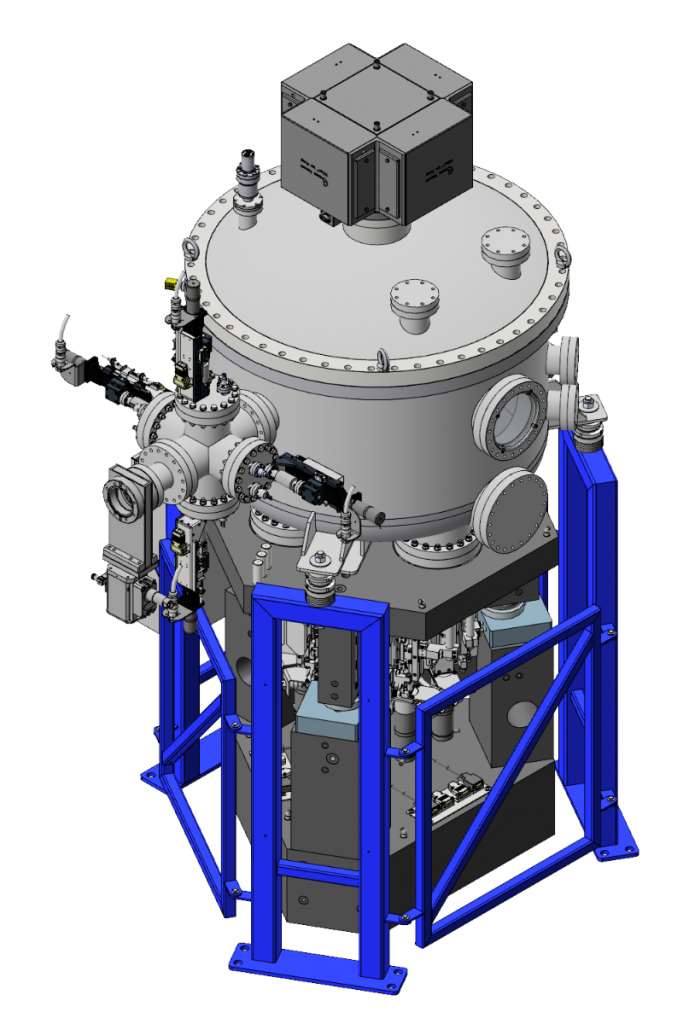

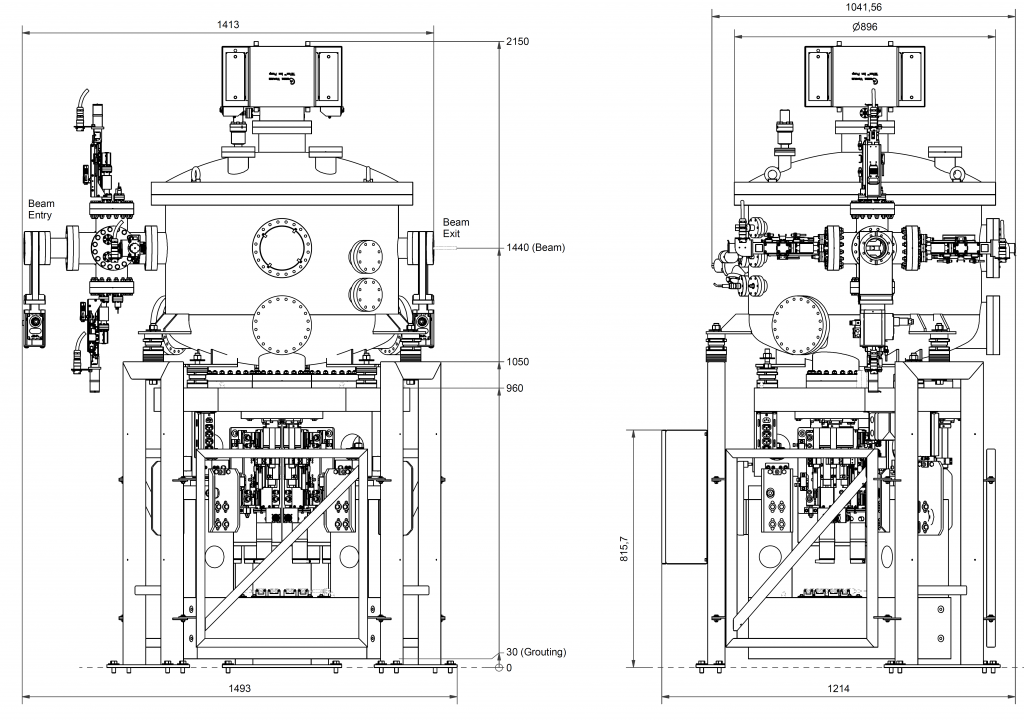

Outer Dimensions
Technical specifications and performance values
General
Vacuum chamber
Chamber type
cylindrical, vertical axis
Main flanges
at the top
Material
1.4404 (C < 0.02%)
Base pressure
10-10 mbar range
Optical design parameters
Beam height
1440 mm
Number of mirrors
1
Surface shape
ellipsoidal
Mirror dimensions
630 mm x 60 mm x 60 mm
Actuator drives for hexapod axes
Resolution (design value)
0.004 µm /motor fine step
(1/128, recommended)
0.005 µm /encoder count
Mirror mechanics
Pitch rotation
Range
± 20 mrad
Resolution (measured value)
0.07 µrad
Repeatability
0.07 µrad (pitch)
0.09 µrad (roll)
Long-term stability (> 30 minutes)
0.06 µrad
Roll rotation
Range
± 20 mrad
Resolution (measured value)
0.05 µrad
Repeatability
0.03 µrad (pitch)
0.12 µrad (roll)
Long-term stability (> 30 minutes)
0.05 µrad
Yaw rotation
Range
± 20 mrad
Long-term stability (> 30 minutes)
0.05 µrad
Lateral translation
Range
± 2.5 mm
Repeatability
0.08 µrad (pitch)
0.15 µrad (roll)
Long-term stability (> 30 minutes)
0.003 µm
Longitudinal translation
Range
± 2.5 mm
Long-term stability (> 30 minutes)
0.007 µm
Vertical translation
Range
± 2.5 mm
Long-term stability (> 30 minutes)
0.008 µm
Baffle slits
Material
OFHC
Range
± 15 mm
Resolution (design value)
0.10 µm /motor step
(full step at actuator)
0.05 µm /encoder count
Performance Test Results

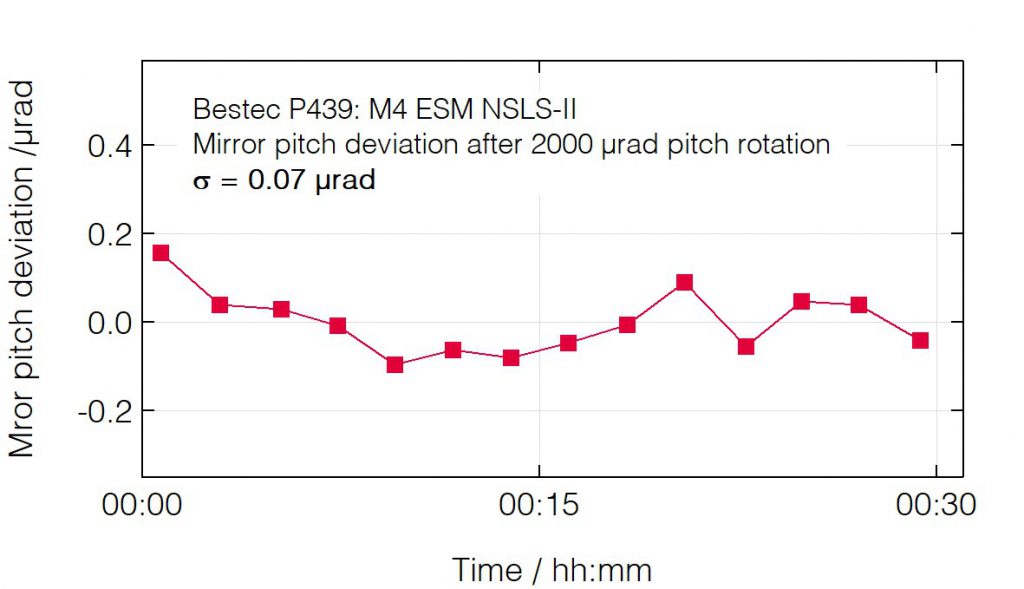

Pitch deviation after pitch change

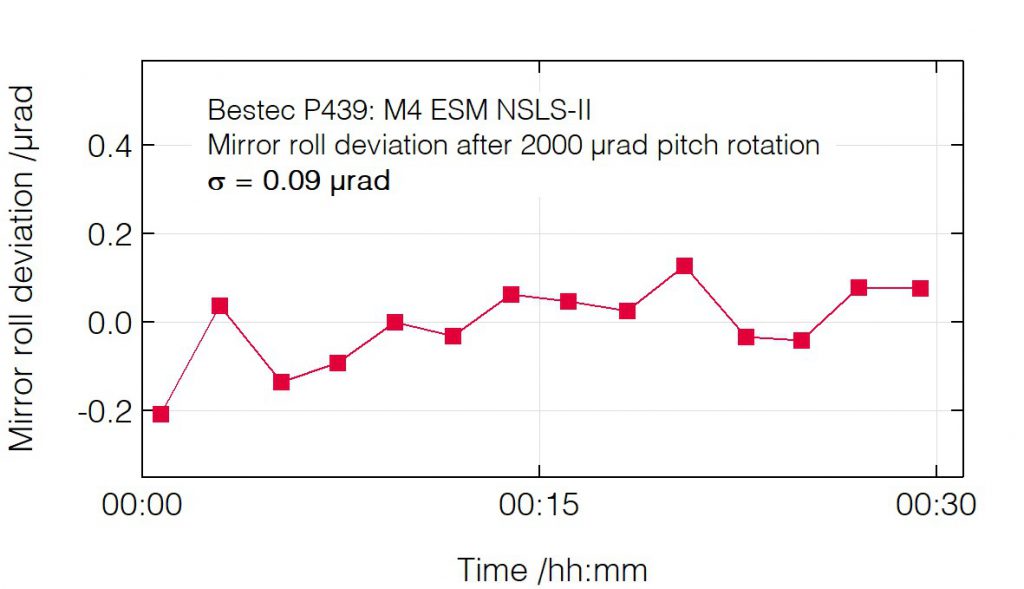

Roll deviation after pitch change

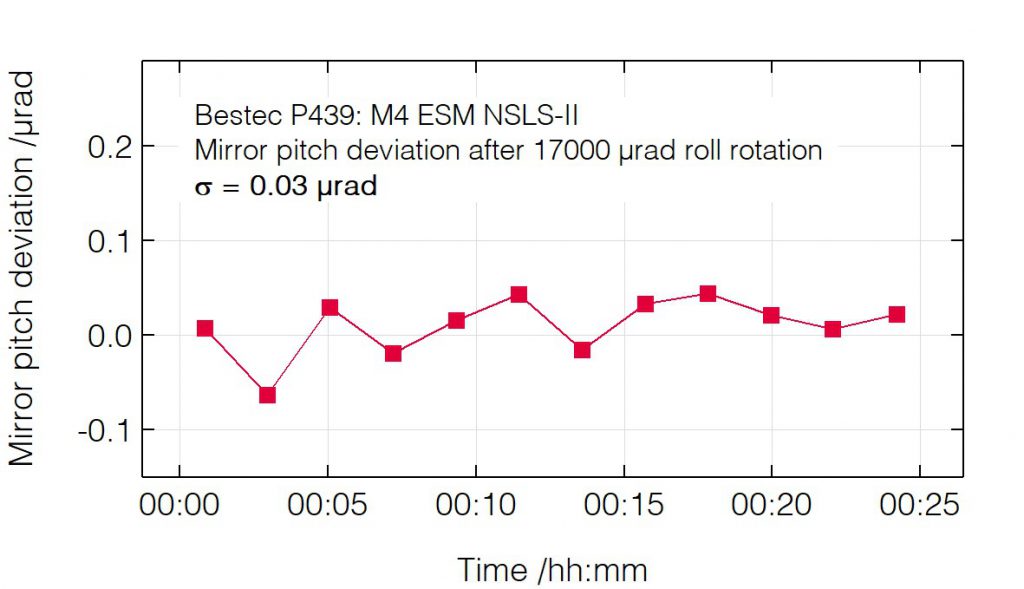

Pitch deviation after roll change

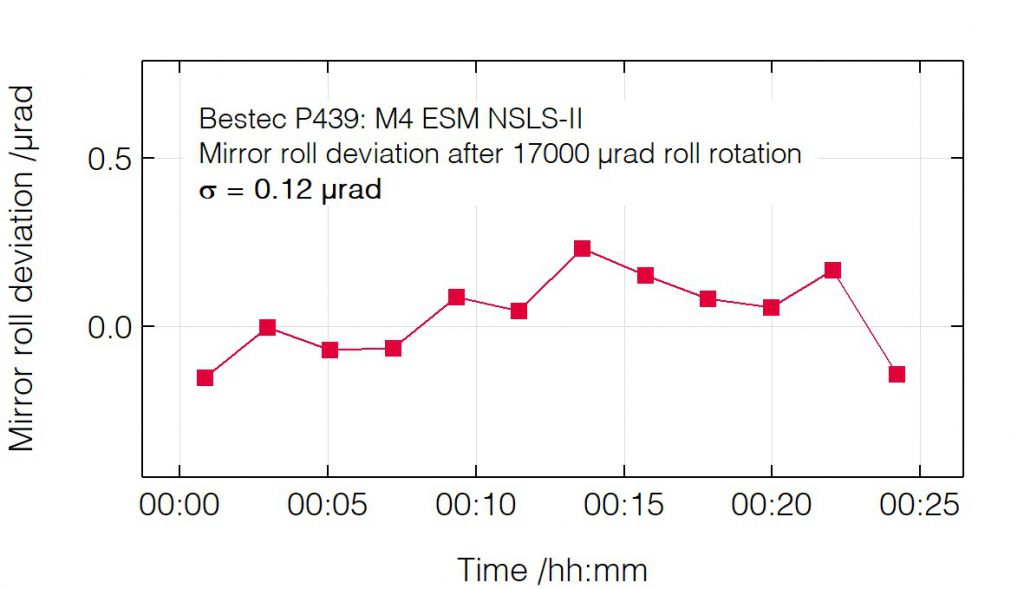

Roll deviation after roll change

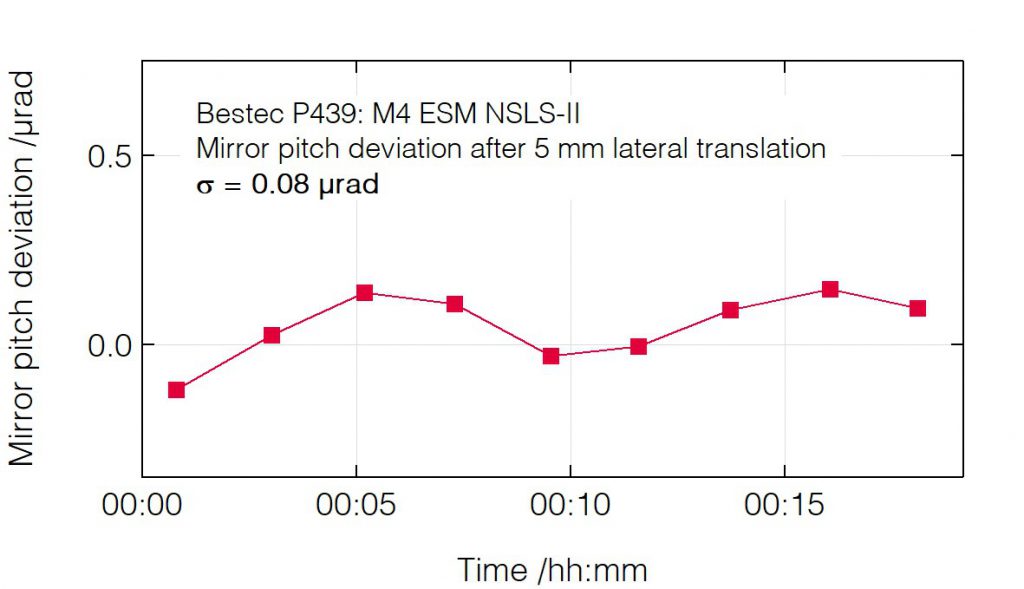

Pitch deviation after mirror translation

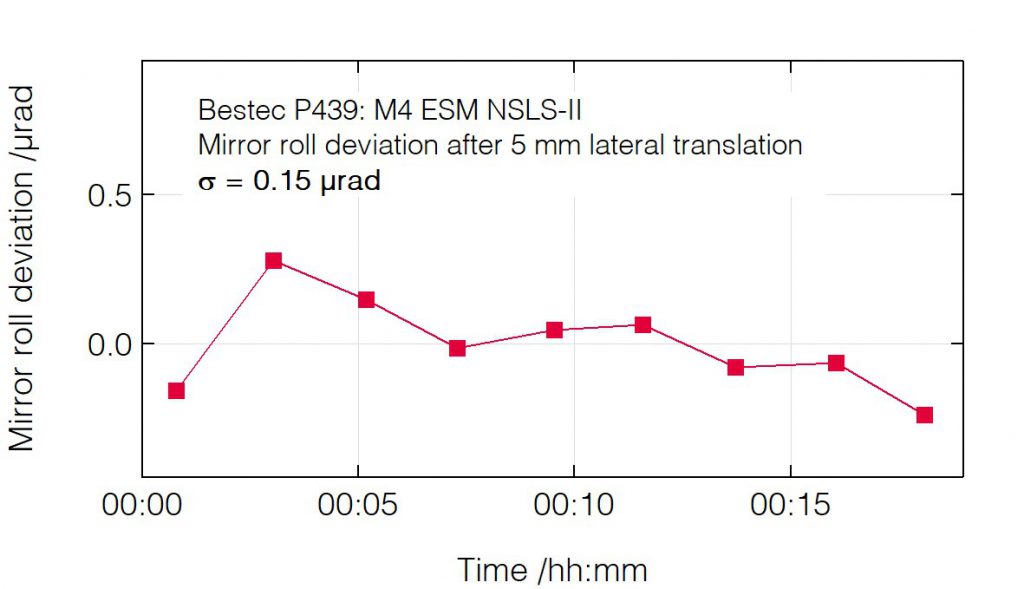

Roll deviation after mirror translation

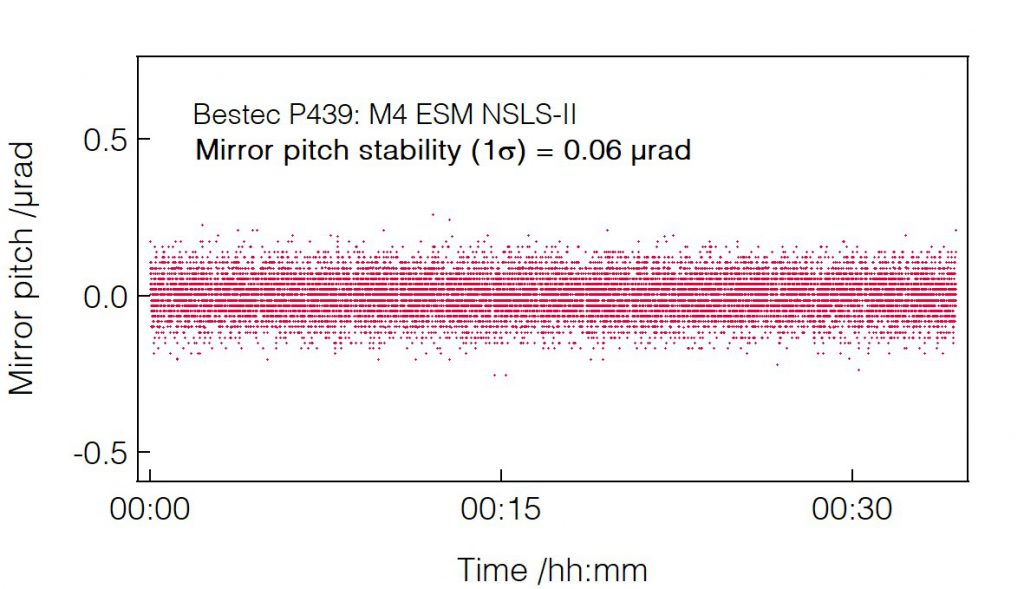

Mirror pitch long-term stability

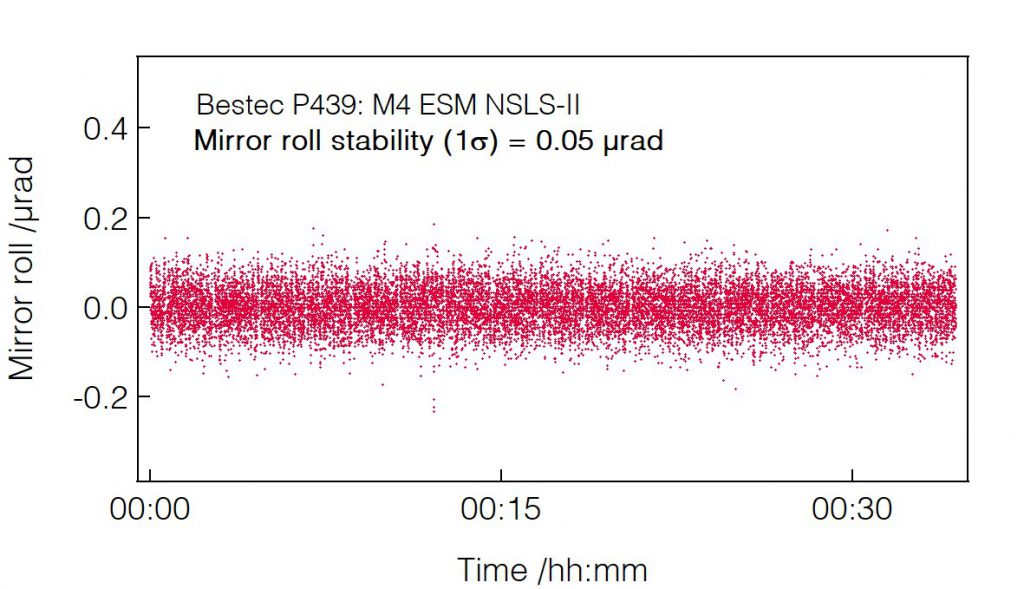

Mirror roll long-term stability

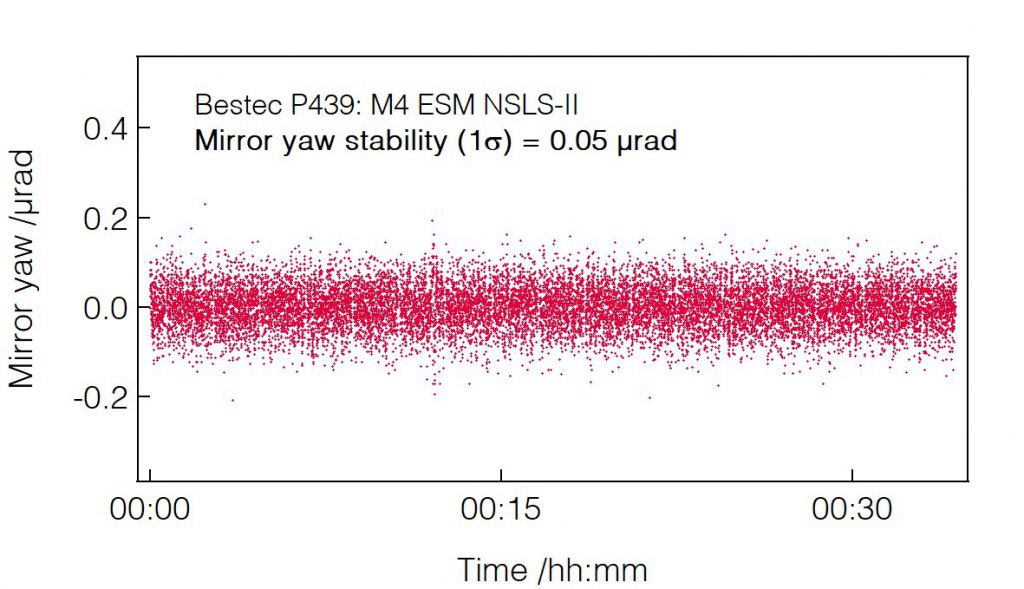

Mirror yaw long-term stability

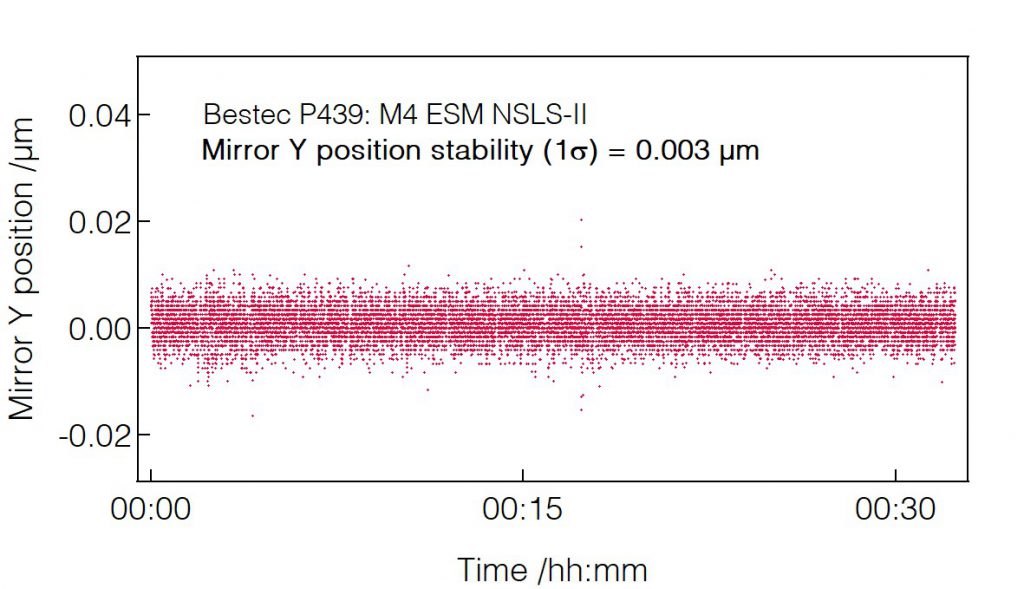

Mirror lateral position long-term stability

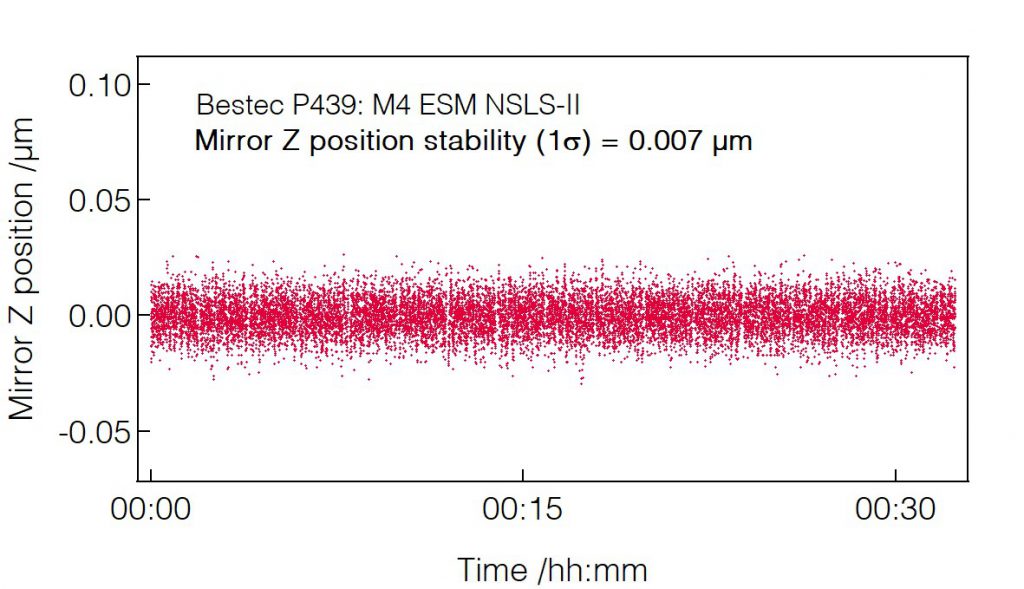

Mirror longitudinal position long-term stability
Mirror vertical position long-term stability

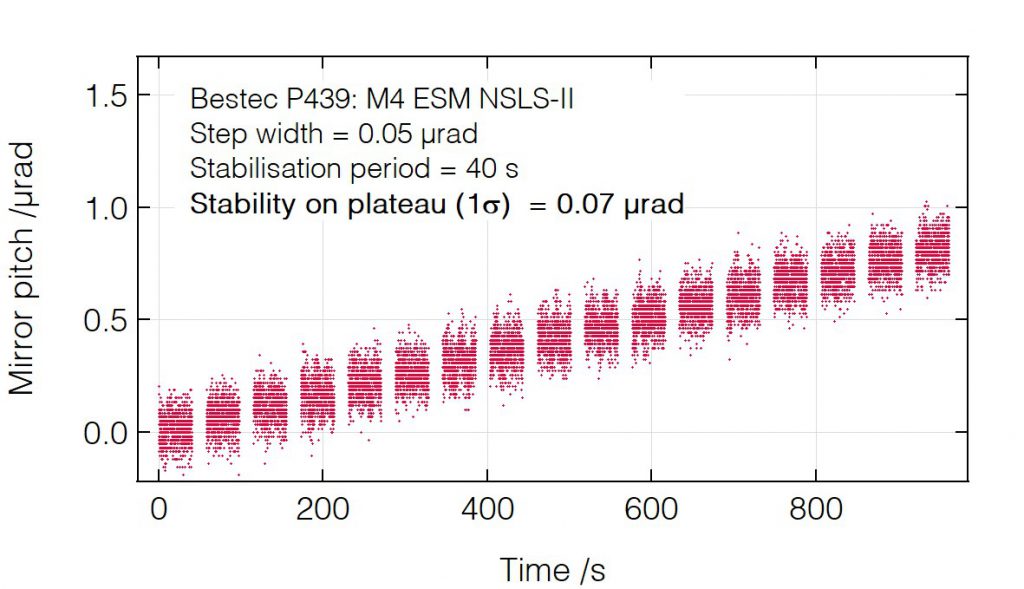

Mirror pitch positioning resolution

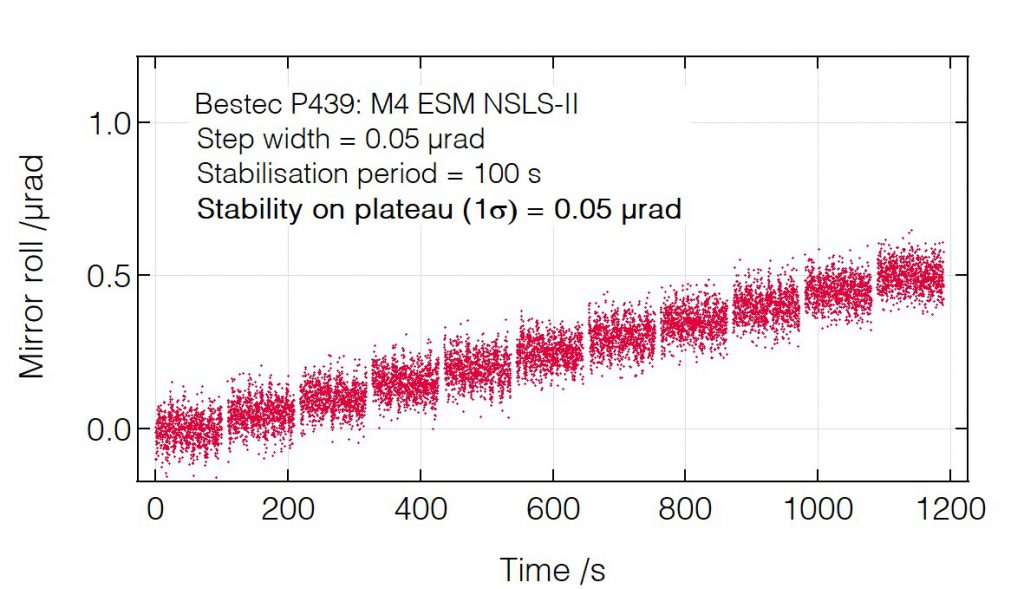

Mirror roll positioning resolution

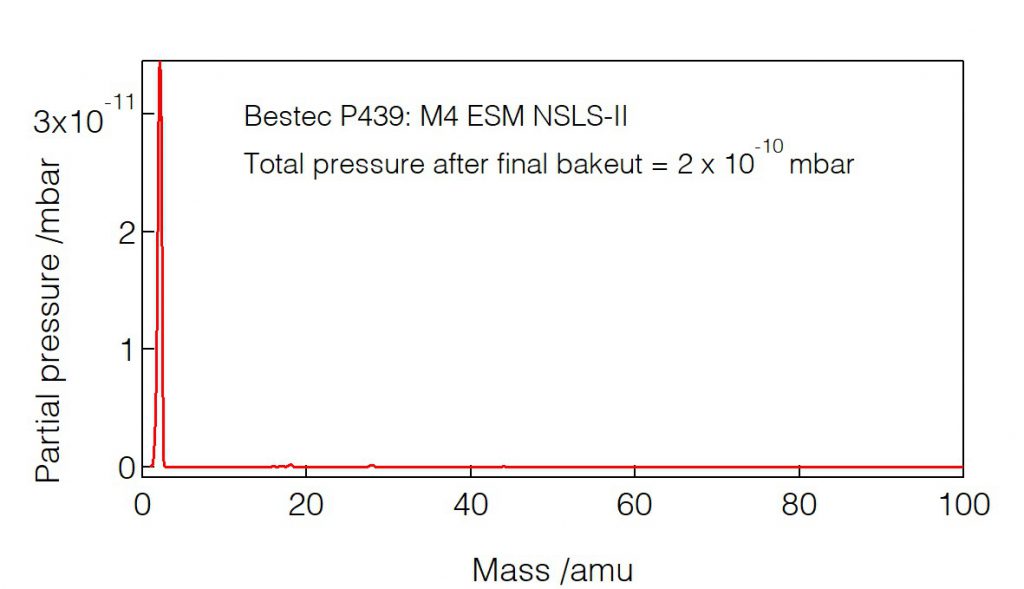

Residual gas analysis
